Natural orbitals and the idempotency diagnostic¶
Canonical molecular orbitals (MOs) are the eigenvectors of the Fock matrix \(\mathbf{F}\). They diagonalise the one-electron Hamiltonian, which makes them the right basis for orbital energies, Koopmans’ ionisation potentials, and SCF convergence.
Natural orbitals (NOs) are eigenvectors of the one-particle reduced density matrix \(\hat\gamma\). They diagonalise the observable — the electron density — which makes them the right basis for population analysis, multireference diagnostics, and any question of the form “where do the electrons actually live?”
For a single Slater determinant the two coincide up to within-subspace rotations. They diverge — informatively — for open-shell, correlated, or symmetry-broken states. This tutorial shows how to compute and read NOs in vibe-qc, and how to interpret the idempotency deviation \(\Delta\) that quantifies the gap between the actual SCF density and a clean single-determinant one.
The basic call¶
vq.natural_orbitals(result, basis) returns a NaturalOrbitals
dataclass holding occupations and AO-basis NO coefficients, sorted by
descending occupation:
import vibeqc as vq
import numpy as np
mol = vq.Molecule([
vq.Atom(8, [0.0, 0.00, 0.00]),
vq.Atom(1, [0.0, 1.43, -0.98]),
vq.Atom(1, [0.0, -1.43, -0.98]),
])
basis = vq.BasisSet(mol, "6-31g*")
result = vq.run_rhf(mol, basis)
no = vq.natural_orbitals(result, basis)
print(no.occupations[:8])
# [2.0 2.0 2.0 2.0 2.0 ~0 ~0 ~0] <- exactly five at 2, rest at 0
print(vq.idempotency_deviation(no))
# ~1e-14 <- numerically zero: this is a single Slater determinant
For a closed-shell H₂O / 6-31G* single-determinant SCF the result is
unambiguous: five orbitals at occupation exactly 2.0, the rest at
0.0, and \(\Delta < 10^{-13}\). The NO coefficient matrix is
S-normalised (no.coefficients.T @ S @ no.coefficients == I) and
drop-in compatible with the existing write_cube_mo / Molden
writers — natural orbitals are just another AO-basis MO matrix.
Open-shell: spin natural orbitals¶
For UHF or UKS, the total NOs (default kind="uhf-total") come from
diagonalising \(\mathbf{D}_\alpha + \mathbf{D}_\beta\). The
spin NOs (kind="uhf-spin") come from \(\mathbf{D}_\alpha -
\mathbf{D}_\beta\) and have occupations in \([-1, 1]\). The two spin-NOs
with the largest \(|n_i|\) pick out exactly where the unpaired
electrons live.
o2 = vq.Molecule(
[vq.Atom(8, [0, 0, +1.14]), vq.Atom(8, [0, 0, -1.14])],
multiplicity=3, # ground-state triplet
)
basis_o2 = vq.BasisSet(o2, "6-31g*")
res_o2 = vq.run_uhf(o2, basis_o2)
no_total = vq.natural_orbitals(res_o2, basis_o2, kind="uhf-total")
no_spin = vq.natural_orbitals(res_o2, basis_o2, kind="uhf-spin")
print(no_total.occupations[:10])
# [2.000 2.000 1.9999 1.9991 ... 1.000 1.000 0.0067]
# ^^^^^^^^^^^ two singly-occupied πg
print(no_spin.occupations[:4])
# [+1.000 +1.000 +0.115 +0.115]
# ^^^^^^^^^^^^ the two unpaired α electrons in πg*
The leading two spin-NOs have occupations exactly +1: those are the
two unpaired α electrons sitting in the \(\pi_g^*\) pair. Render either
of them with vq.evaluate_ao(basis, points) @ no_spin.coefficients[:, 0]
and you get the textbook \(\pi^*\) shape — the same orbitals chemistry
draws on the back of an envelope, derived directly from the SCF
density.

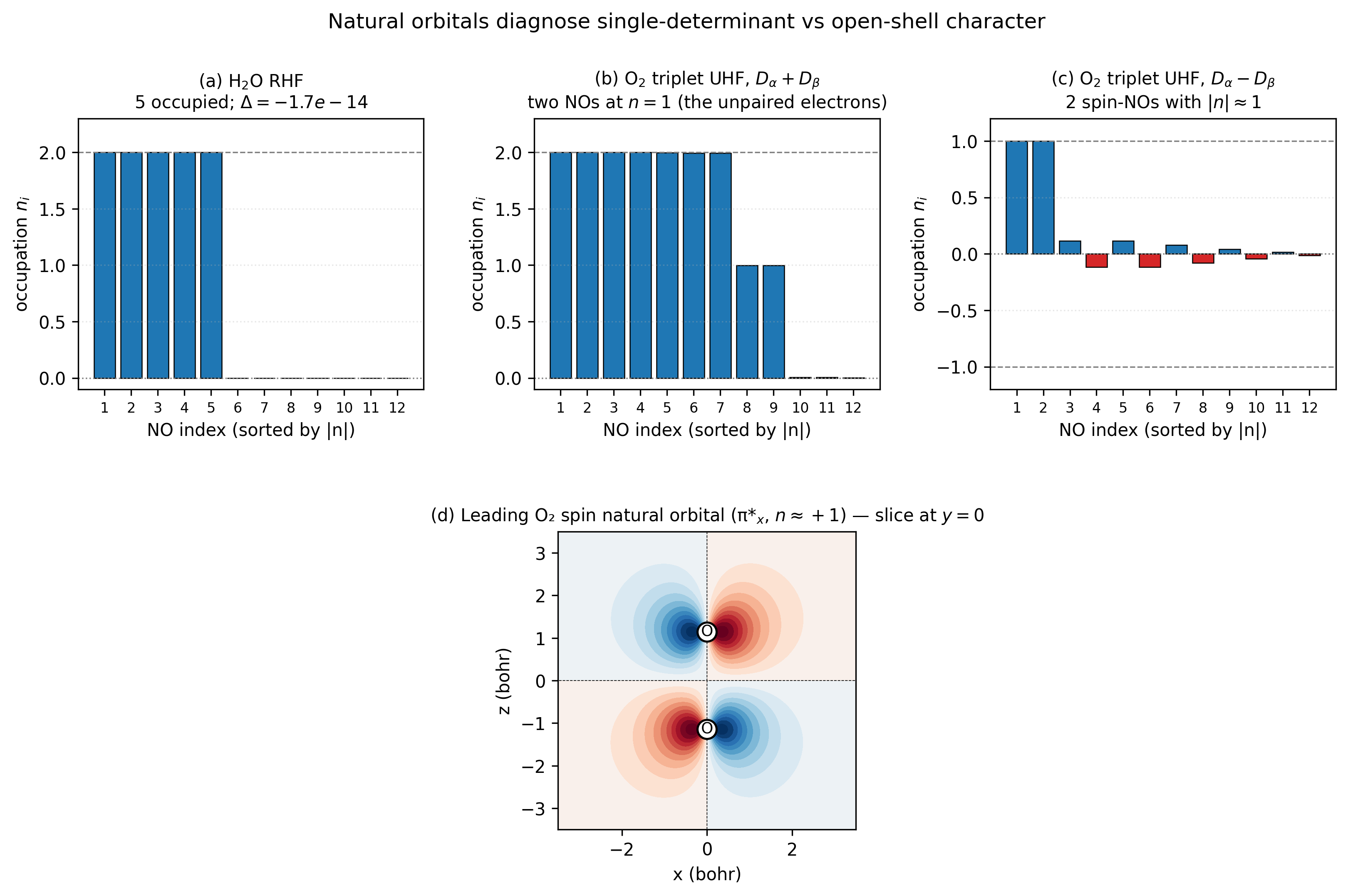

A four-panel anatomy of natural orbitals across the closed-shell /
open-shell boundary. Panel (a) confirms a closed-shell HF state is
genuinely a single determinant — every NO occupation is integer to
machine precision. Panel (b) shows that even for an open-shell
UHF, \(D_\alpha + D_\beta\) has natural occupations clustered at
\(\{0, 1, 2\}\): the two NOs at exactly 1 are the unpaired electrons.
Panel (c) is the same data viewed through the spin density
\(D_\alpha - D_\beta\) — only the two unpaired electrons have \(|n_i|
\approx 1\), the rest are spin-polarisation tail. Panel (d) plots
the leading spin NO directly: the oxygen \(\pi_g^*\) orbital with a
nodal plane at \(z = 0\) and lobes pointing \(\pm x\) above and below
each O nucleus. Reproduce with
python3 examples/plots/natural-orbital-occupations.py.
When NOs differ from canonical MOs¶
For a single Slater determinant the natural orbitals span the same occupied / virtual subspaces as the canonical MOs — the two sets are related by a within-subspace unitary rotation that the density doesn’t see. NO occupations come out at exactly \(\{0, 2\}\) (or \(\{0, 1\}\) for per-spin UHF), and \(\Delta = 0\) to numerical precision.
For a correlated wavefunction (CASSCF, MP2 natural orbitals, DLPNO-CCSD natural orbitals, …) the eigenvalues of \(\hat\gamma\) spread between 0 and 2. Strongly correlated orbitals have occupations near 1 (most informative), weakly correlated ones near 0 or 2. NO occupations are the standard diagnostic for “how much multi-reference character is there?”:
Largest NO occupation \(\ne 2\) |
Interpretation |
|---|---|
\(> 1.95\) |
Single-reference: HF / DFT / single-reference CC are reliable |
\(1.8 \dots 1.95\) |
Mild correlation: MP2 / CCSD usually adequate |
\(1.4 \dots 1.8\) |
Strong correlation: need CASSCF / NEVPT2 / DMRG |
\(\to 1.0\) |
Open-shell singlet / diradical: CASSCF mandatory |
For a single-reference SCF the occupation tail is always at 2 (or 0) to numerical precision; this tutorial’s H₂O example sits at \(2.0\) to 14 digits because the Hartree–Fock density is exactly idempotent. As soon as a correlated method enters (Phase 12 of the roadmap brings DLPNO-CCSD(T) where this becomes load-bearing), the spread starts to matter.
Reading \(\Delta\) correctly¶
The idempotency_deviation formula depends on which density was
diagonalised:
|
\(\Delta\) formula |
What “small \(\Delta\)” means |
|---|---|---|
|
\(\tfrac{1}{2}\sum_i n_i (2 - n_i)\) |
Density is close to a single closed-shell determinant |
|
\(\sum_i n_i (1 - n_i)\) |
Density is close to an idempotent per-spin density (always true for UHF) |
|
\(\tfrac{1}{2}\sum_i (1 - n_i^2)\) |
Yamaguchi-style spin contamination across the AO basis — not \(N_{\text{unpaired}}\) |
The triplet-O₂ example has \(\Delta = 1.04\) for uhf-total and
\(\Delta \approx 13\) for uhf-spin. Neither indicates a problem.
\(\Delta_{\text{total}} \approx 1\) comes from the two singly-occupied
NOs each contributing \(\tfrac{1}{2} \cdot 1 \cdot (2 - 1) = 0.5\);
\(\Delta_{\text{spin}} \approx 13\) measures spin density spread
across the AO basis (~26 spin-polarised orbitals each contributing
\(\sim 0.5\)). To recover the correct \(N_{\text{unpaired}} = 2\) from
the spin NOs, count eigenvalues with \(|n_i| > 0.95\), don’t sum the
Yamaguchi \(\Delta\). The proper Head–Gordon \(N_{\text{unpaired}}\) is
\(\sum_i \min(n_i, 2 - n_i)\) for the total NOs — equal to 2 for our
O₂.
Theory¶
The one-particle reduced density matrix is
The electron density is its diagonal: \(\rho(\mathbf{r}) = \gamma(\mathbf{r}, \mathbf{r})\). Löwdin’s 1955 theorem says the operator \(\hat\gamma\) has a complete set of eigenfunctions — the natural orbitals \(\phi_i^{\text{NO}}\) — whose eigenvalues \(n_i \in [0, 2]\) (in [0, 1] for spin-orbitals) are the natural occupation numbers:
In a finite AO basis the operator equation becomes the generalised eigenproblem \(\mathbf{D} \mathbf{S} \mathbf{c}_i = n_i \mathbf{c}_i\), which vibe-qc solves via Löwdin’s symmetric route: form \(\tilde{\mathbf{D}} = \mathbf{S}^{1/2} \mathbf{D} \mathbf{S}^{1/2}\), diagonalise, and back-transform. This avoids the non-symmetric eigenproblem \(\mathbf{D} \mathbf{S}\) (whose eigenvalues are real but whose eigenvectors require complex arithmetic).
A Hartree–Fock density is idempotent in the orthonormal basis:
That algebraic statement is the statement that \(n_i \in \{0, 2\}\) exactly — every eigenvalue of \(\hat\gamma\) is either fully occupied or fully unoccupied. The deviation \(\Delta = \tfrac{1}{2}\sum_i n_i (2 - n_i)\) is zero iff every \(n_i \in \{0, 2\}\), and grows as occupations drift into the (0, 2) interior. For correlated densities \(\Delta\) is the standard quantitative measure of how much multi-reference character is present.
For UHF, \(\mathbf{D}_\alpha\) and \(\mathbf{D}_\beta\) are each idempotent (in their respective spin spaces) but their sum is not — hence the small “spin polarisation” tail in panel (b) above. The spin density \(\mathbf{D}_\alpha - \mathbf{D}_\beta\) has eigenvalues in \([-1, 1]\), and its leading eigenvectors localise the unpaired-electron density. This is the most direct route to “where are the radical centres” without going through the canonical-MO labelling.
Resources¶
H₂O / 6-31G* RHF + NO diagonalisation: ~25 MB peak RAM, <0.05 s on one core (Apple M2).
O₂ triplet / 6-31G* UHF + total + spin NO + 2D render: ~50 MB peak RAM, <0.5 s on one core.
The full figure (script
examples/plots/natural-orbital-occupations.py) runs end-to-end in under 1 s. NO diagonalisation cost is \(\mathcal{O}(N_{\text{bf}}^3)\) — negligible compared to any SCF.
Caveats¶
NO sign is arbitrary. Like canonical MOs, NOs are eigenvectors — defined only up to sign. Render the density \(|\phi_i^{\text{NO}}|^2\) if you want a sign-invariant picture.
Within-degenerate-subspace rotations. When two NOs share an occupation (the two \(\pi_g^*\) in O₂ triplet, both at \(n = +1\)), any orthogonal mixture is also a valid pair of NOs. Renderings can legitimately appear “rotated” between runs / packages.
Basis dependence. Like Mulliken / Löwdin charges, NO occupations drift with basis-set size — diffuse functions populate weakly, giving long tails of small-\(n\) NOs. Compare across basis sets only for the leading NOs.
Active-space picking. When NO occupations are used to define a CASSCF active space, the standard rule is “include any NO with \(0.02 < n < 1.98\).” vibe-qc doesn’t yet ship CASSCF (Phase 0.10 on the roadmap), but the NO output format here is already the right one to feed into one.
References¶
Löwdin, P.-O. “Quantum theory of many-particle systems. I. Physical interpretations by means of density matrices, natural spin-orbitals, and convergence problems in the method of configurational interaction,” Phys. Rev. 97, 1474 (1955). The original natural-orbital paper. Defines \(\hat\gamma\), proves the eigenvalue inclusion \(n_i \in [0, 2]\), and introduces the occupation-number diagnostic.
Davidson, E. R. Reduced Density Matrices in Quantum Chemistry. Academic Press (1976). The standard monograph treatment of \(\hat\gamma\) and natural orbitals; the source for most modern multi-reference diagnostics.
McWeeny, R. Methods of Molecular Quantum Mechanics, 2nd ed. Academic Press (1989), Chapter 5. Clearest derivation of the idempotency relation \(\mathbf{D}\mathbf{S}\mathbf{D}\mathbf{S} = \mathbf{D}\mathbf{S}\) and its physical content.
Yamaguchi, K.; Jensen, F.; Dorigo, A.; Houk, K. N. “A spin correction procedure for unrestricted Hartree-Fock and Møller-Plesset wavefunctions for singlet diradicals and polyradicals,” Chem. Phys. Lett. 149, 537 (1988). Origin of the spin-NO contamination diagnostic the
uhf-spinformula approximates.Head-Gordon, M. “Characterizing unpaired electrons from the one-particle density matrix,” Chem. Phys. Lett. 372, 508 (2003). The modern definition of \(N_{\text{unpaired}} = \sum_i \min(n_i, 2 - n_i)\) used in panel-(b)’s “two NOs at \(n = 1\)” reading.
Next¶
Tutorial 11: Orbital and density visualisation shows how to write the NO coefficients to
.molden/.cubefor external viewers — the NO matrix is drop-in compatible with the same writers.Tutorial 21: Projected DOS is the periodic-system analogue — energy-resolved decomposition of the density of states onto per-atom orbital projections.
