Periodic SCF convergence: damping, DIIS, and level shifts

A periodic Hartree–Fock (or KS-DFT) SCF iterates the Roothaan–Hall equations until the density is self-consistent: at each step build a Fock matrix from the current density, diagonalise it for new orbitals, build a new density, repeat. For molecules and large unit cells this just works in 10–20 iterations. For tight-cell crystals (lattice \(\sim\) 5 bohr) where bands sit close at the Fermi level, the naive iteration can oscillate — the density swaps periodically between two states without ever settling on the fixed point. vibe-qc ships three knobs that stabilise the SCF in this regime:

  1. Density damping (damping) — linear mix of old and new density before the next Fock build. Default 0.5.

  2. Pulay DIIS (use_diis) — extrapolate to the SCF fixed point using a history of past densities. Default True.

  3. Level shift (level_shift, Phase C1a, v0.4.0 new) — raise virtual MO eigenvalues by \(b\) during iteration, which smoothly biases each step toward the lower-energy state without changing the SCF fixed point. The headliner of v0.4.0’s tight- cell convergence pass.

This tutorial walks through the level-shift mechanism, when to use it, and how it composes with the existing damping + DIIS machinery.

The basic call

level_shift lives on PeriodicSCFOptions / PeriodicRHFOptions / PeriodicKSOptions (default 0.0). Set it to a positive Hartree value:

import vibeqc as vq
import numpy as np

# Tight 3D LiH cubic cell — a notoriously hard convergence case.
a = 4.5
sysp = vq.PeriodicSystem(
    3, np.eye(3) * a,
    [vq.Atom(3, [0.05,         0.05,         0.05]),
     vq.Atom(1, [0.5*a + 0.05, 0.5*a + 0.05, 0.5*a + 0.05])],
)
basis = vq.BasisSet(sysp.unit_cell_molecule(), "sto-3g")

opts = vq.PeriodicSCFOptions()
opts.lattice_opts.coulomb_method = vq.CoulombMethod.EWALD_3D
opts.use_diis     = False         # disable to see level shift cleanly
opts.damping      = 0.1
opts.level_shift  = 0.3           # ← Hartree
opts.max_iter     = 30
opts.conv_tol_grad = 1e-5

result = vq.run_rhf_periodic_gamma_scf(
    sysp, basis, opts, omega=0.5, spacing_bohr=0.5,
)
print(f"converged in {result.n_iter} iters at E = {result.energy:.6f} Ha")

The dispatcher (run_rhf_periodic_scf for multi-k, run_rhf_periodic_gamma_scf for Γ-only) propagates level_shift through to whichever Coulomb-method backend it routes to.

Inertness at convergence

The Saunders–Hillier level shift transforms the Fock matrix during iteration but does not change the SCF fixed point. Every value of \(b\) converges to the same total energy, the same MO eigenvalues (reported as the physical unshifted values in the result), and the same density. The only thing that differs is the iteration trajectory:

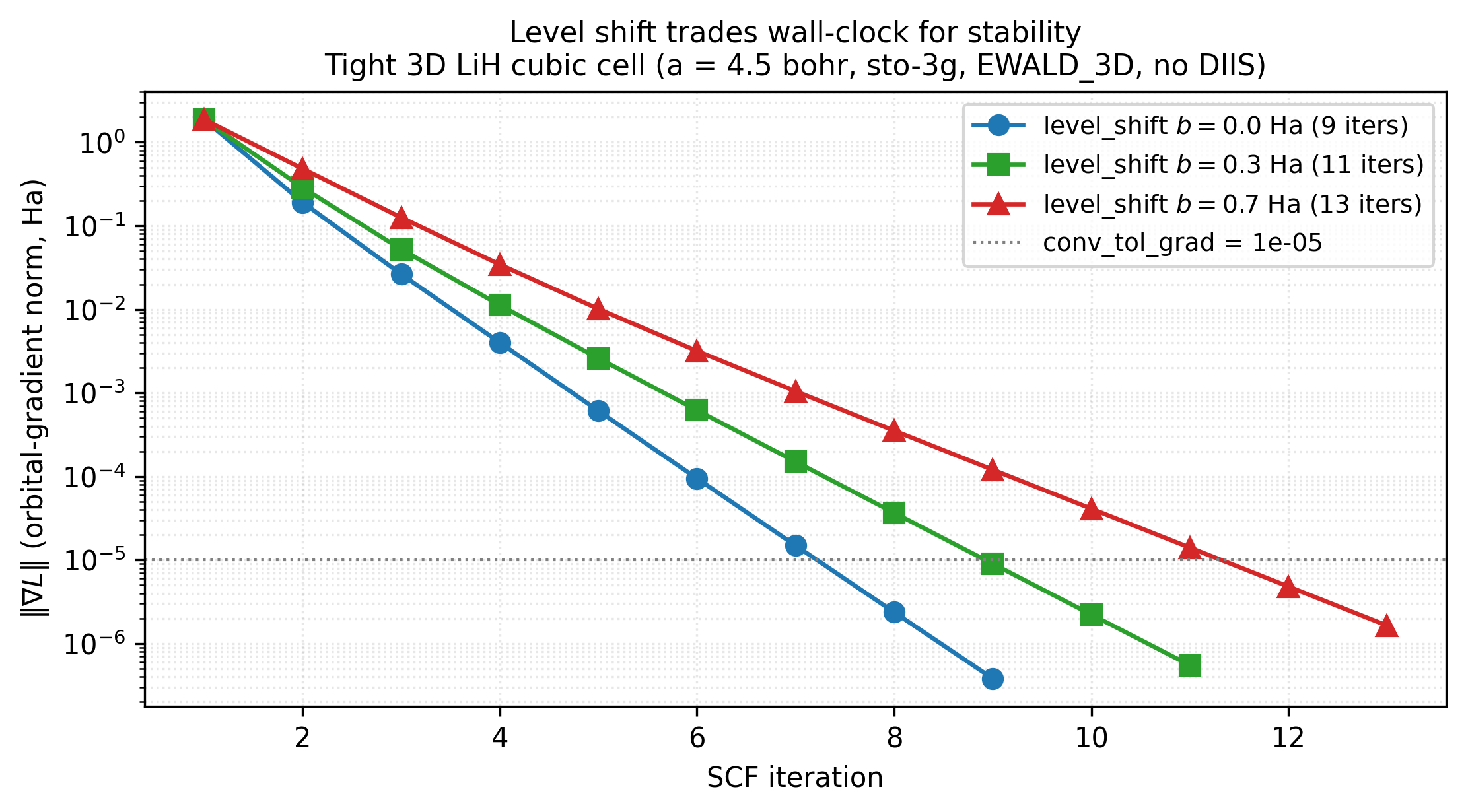

Level shift SCF trace: orbital-gradient norm versus iteration on log-y for tight 3D LiH cubic cell at three level_shift values 0.0 / 0.3 / 0.7 Ha. The b=0 trajectory is steepest and reaches conv_tol_grad in 9 iterations; b=0.3 in 11 iterations; b=0.7 in 13 iterations. All three converge to the same final total energy.

Three Γ-Ewald SCFs on the same tight LiH cell, varying only level_shift. The orbital-gradient norm \(\|\nabla L\|\) drops monotonically toward conv_tol_grad (grey dashed line) for all three, but the slope changes: \(b = 0\) (blue) is steepest and fastest (9 iterations); \(b = 0.3\) (green) is shallower (11); \(b = 0.7\) (red) shallower still (13). All three converge to the same total energy — the energy spread across the three runs is \(7.6 \times 10^{-9}\) Ha, well under the \(10^{-6}\) “indistinguishable” threshold the test suite uses. Reproduce with python3 examples/plots/level-shift-scf-trace.py.

The trade-off is wall clock vs stability. Larger \(b\) takes more iterations because each step is smaller; smaller \(b\) takes fewer iterations but each step is more aggressive — and the more aggressive step can overshoot, bouncing between two near-degenerate density states. For a near-metallic tight cell or a small-gap semiconductor where the canonical iteration would oscillate, the small extra wall-clock cost of \(b = 0.3\) buys you guaranteed monotone progress.

When you need a level shift

Symptom (in the SCF trace)

Most likely cause

Fix

Energy oscillates between two values without converging

Near-degenerate occupied/virtual at \(E_F\)

level_shift = 0.3

delta_e cycles +,−,+,−,… but |grad| stays bounded

Density oscillation; DIIS extrapolation can’t escape the cycle

level_shift = 0.3 and increase damping to 0.7

|grad| plateau at ~\(10^{-3}\), energy stable

DIIS subspace is contaminated by an unphysical mixture

Restart with level_shift = 0.5 and diis_start_iter = 5

|grad| increases from one iteration to the next

Catastrophic oscillation; the canonical iteration is diverging

level_shift = 1.0 and lower damping to 0.3

The default level_shift = 0.0 reproduces v0.1.0 behaviour exactly, so existing scripts get the same results. Flip it on opportunistically when you see one of the symptoms above. Production CRYSTAL workflows on tight cells routinely use \(b = 0.5\) as a safety default.

Composing with DIIS and damping

The three convergence aids work in different parts of the iteration:

  • Damping averages densities before the Fock build: \(D_{i} \leftarrow (1 - \alpha) D_{i-1} + \alpha D_i^{\text{new}}\).

  • DIIS extrapolates Fock matrices using a history of past iterations to minimise the residual norm.

  • Level shift modifies the Fock matrix before diagonalisation in each iteration, raising virtual eigenvalues so the diagonalisation doesn’t easily mix occupieds and virtuals.

They compose: turning all three on at once is the standard hard-case recipe. Order of stabilisation strength: start with damping (cheap, no effect on converged density), add DIIS (essentially free, on by default), and finally enable level shift only when the trace shows real oscillation. With DIIS on, the level shift is most effective during startup before DIIS has built a useful subspace — the figure above intentionally turns DIIS off so the level-shift effect is unambiguous.

Theory

The Saunders–Hillier transformation

At each SCF iteration, instead of diagonalising \(\mathbf{F}\) directly, diagonalise the shifted Fock matrix

\[ \tilde{\mathbf{F}} = \mathbf{F} + b \, \mathbf{S} - \tfrac{b}{2} \, \mathbf{S}\mathbf{D}\mathbf{S} \]

where \(\mathbf{S}\) is the AO overlap, \(\mathbf{D}\) is the current density matrix, and \(b > 0\) (Hartree) is the level-shift parameter. Saunders and Hillier (1973) showed this transformation:

  1. Raises virtual eigenvalues by \(b\) at the SCF fixed point (since \(\mathbf{S}\mathbf{D}\mathbf{S} = \mathbf{S}\) on virtuals and \(\mathbf{S}\mathbf{D}\mathbf{S} = 2\mathbf{S}\) on occupieds for a closed-shell idempotent density).

  2. Leaves the SCF fixed point unchanged because at convergence the ground-state density \(\mathbf{D}^*\) satisfies $\tilde{\mathbf{F}}(\mathbf{D}^) \mathbf{C}^ = (\mathbf{F}^*

    • b,\mathbf{P}\text{virt})\mathbf{C}^*\( with \)\mathbf{P}\text{virt}$ the projector onto virtuals — and the occupied eigenspace is unchanged.

  3. Increases the HOMO–LUMO gap during iteration by exactly \(b\), making the diagonalisation more numerically stable.

The shifted-eigenvalues are not what vibe-qc reports — result.mo_energies reports the un-shifted physical eigenvalues, recovered with one final Fock construction without the shift after convergence. The shift is purely an iteration aid.

Why this fixes oscillation

Periodic SCF oscillation typically arises from a near-degenerate occupied/virtual pair at the Fermi level. Without level shift, the diagonalisation at iteration \(i\) may swap the occupations of the two states, giving a wildly different density at iteration \(i+1\), which swaps them back, ad infinitum. The level shift increases the gap by \(b\) during iteration, so the two states are no longer near-degenerate in the diagonalisation eigensystem and the swap doesn’t happen. By the time convergence is reached, the physical gap (without shift) may still be small — but the iteration found the right ordering and the small gap is no longer a numerical problem.

Composing with C1b smearing

C1b (Fermi–Dirac smearing + fractional occupations) has shipped in the multi-k Ewald RHF driver. Set opts.smearing_temperature = T_Ha (Hartree, default 0.0) on PeriodicRHFOptions / PeriodicSCFOptions / PeriodicKSOptions; when nonzero, occupations follow

\[ n_i \;=\; \frac{2}{1 + \exp((\varepsilon_i - \mu) / T)} \]

with bisection on the chemical potential \(\mu\) to satisfy the per-cell electron count. The free energy A = E − T·S is the quantity the SCF converges (variational under smearing); the result object exposes free_energy, entropy, fermi_level, and per-k occupations arrays.

Smearing vs level shift: level shift fixes near-degenerate occupied/virtual swap oscillation when there’s still a clear occupation pattern. Smearing fixes genuinely metallic systems where the very notion of a clean occupied/virtual partition disappears at the Fermi level. They compose: a tight metallic cell typically benefits from both level_shift = 0.3 and smearing_temperature ≈ 0.005 Ha (~1500 K, well above any “physical” electronic temperature but below the gap scale that matters for total energies). C1b smearing currently lives in the periodic Ewald RHF only — molecular and periodic UKS smearing land in follow-up sub-phases.

Still on the roadmap

  • C1c — second-order / quadratically-convergent SCF as a fallback when DIIS + smearing still oscillate. Used for the very hardest tight-cell cases (3D defect supercells, transition-metal oxides). Tutorial will follow when shipped.

Resources

  • 3D LiH cubic cell at \(a = 4.5\) bohr, sto-3g, EWALD_3D Γ-only, no DIIS: ~50 s per SCF on one core (Apple M2). Three runs (level_shift = 0.0 / 0.3 / 0.7) total ~150 s for the embedded figure.

  • Per-iteration cost is dominated by the Ewald Fock build; level shift adds one \(\mathbf{S} \cdot \mathbf{D} \cdot \mathbf{S}\) matrix product per iteration (\(\mathcal{O}(N_\text{bf}^3)\) FLOPs) — typically <1% wall-time overhead.

  • Memory peak is one Fock + one overlap + one density per k-point: \(\sim 3 \cdot N_\text{bf}^2 \cdot N_k \cdot 16\) bytes. For LiH sto-3g on a 4×4×4 mesh: ~1 MB.

Caveats

  • level_shift only on the periodic drivers in v0.4.0. Molecular RHF / UHF / RKS / UKS get the level-shift hook in C1a-2 (a follow-up phase). For molecular cases use damping + use_diis, which already handle nearly all cases.

  • Don’t over-shift. \(b > 1\) Ha for a system with a gap of \(\sim\) 1 Ha effectively pushes virtuals far enough that the iteration becomes a pure damping loop with no real Fock-matrix dynamics — numerically stable but extremely slow.

  • DIIS subspace contamination. If you flip level_shift on mid-run after DIIS has built up a subspace from oscillating iterations, the contaminated subspace can fight the level shift. Usually faster to restart from initial_guess = vq.InitialGuess.SAD with the level shift on from iteration 1.

  • Reported MO energies are physical, not shifted. Don’t subtract \(b\) from them by hand.

References

  • Saunders, V. R.; Hillier, I. H. “A ‘Level-Shifting’ method for converging closed shell Hartree-Fock wave functions,” Int. J. Quantum Chem. 7, 699 (1973). The original level-shift paper. vibe-qc’s \(\tilde{\mathbf{F}} = \mathbf{F} + b\mathbf{S} - (b/2)\mathbf{SDS}\) is the form Saunders and Hillier introduced.

  • Pulay, P. “Convergence acceleration of iterative sequences. The case of SCF iteration,” Chem. Phys. Lett. 73, 393 (1980). The DIIS algorithm vibe-qc’s use_diis implements.

  • Pulay, P. “Improved SCF convergence acceleration,” J. Comput. Chem. 3, 556 (1982). Refinements to the DIIS weight calculation (the “C2” residual norm) that vibe-qc’s multi-k DIIS uses.

  • Helgaker, T.; Jørgensen, P.; Olsen, J. Molecular Electronic- Structure Theory. Wiley (2000), Chapter 10. Standard textbook treatment of HF iteration, level shifts, and DIIS — the source many later QC textbooks adapt.

  • Pisani, C.; Dovesi, R.; Roetti, C. Hartree-Fock Ab Initio Treatment of Crystalline Systems. Lecture Notes in Chemistry vol. 48, Springer (1988). The CRYSTAL convergence-acceleration apparatus vibe-qc’s periodic SCF mirrors. Section 4 covers the level-shift / smearing / damping triad in periodic context.
