Geometry optimization

Relax a molecular structure to its energy minimum. vibe-qc uses ASE’s BFGS-line-search optimizer under the hood, driven by analytic HF/DFT forces from the C++ core. run_job(..., optimize=True) is the one-liner; the standard .out / .molden / .traj files all get written as usual, plus the trajectory animation.

Water at HF/6-31G*

Starting from an approximate geometry:

from pathlib import Path
from vibeqc import Atom, Molecule, run_job

mol = Molecule([
    Atom(8, [0.0,   0.0,   0.0  ]),
    Atom(1, [0.0,   1.60, -1.10]),   # slightly off-equilibrium
    Atom(1, [0.0,  -1.60, -1.10]),
])

run_job(
    mol,
    basis="6-31g*",
    method="rhf",
    output="water_opt",
    optimize=True,
    fmax=0.05,            # eV/Å — converged when |F|_max drops below this
    max_opt_steps=50,
)

Files produced:

  • water_opt.out — initial geometry, optimizer parameters, final optimized geometry, then the full SCF trace at the minimum

  • water_opt.molden — MOs at the minimum, for Avogadro / Jmol

  • water_opt.traj — one frame per BFGS step (ASE binary); view with ase gui water_opt.traj

Reading the output

After the banner and atom table, water_opt.out contains:

  Geometry optimisation (ASE/BFGS) -> water_opt.traj
  fmax = 0.05 eV/A, max_steps = 50

  Optimised geometry
  Atoms (bohr)
  ------------------------------------------------------
     1  Z=  8       0.00000000      0.00000000      0.07390216
     2  Z=  1       0.00000000      1.44014211     -1.00364326
     3  Z=  1       0.00000000     -1.44014211     -1.00364326
  charge=0  multiplicity=1  n_electrons=10

  iter     energy (Ha)  ...
  (SCF trace at the optimised geometry)
  ...
  converged in 7 iterations; E = -76.0108432849 Ha

The OH bond length and HOH angle at this HF/6-31G* minimum: r(OH) = 0.947 Å, HOH = 105.5° (experimental: 0.957 Å, 104.5°). HF slightly under-shoots the bond and opens the angle.

Parameters

Argument

Default

Meaning

fmax

0.05

Force-convergence tolerance (eV/Å)

max_opt_steps

200

Hard iteration limit for the optimizer

rhf_options

RHFOptions()

Applied to every intermediate SCF; bump max_iter here if BFGS visits hard-to-converge geometries

rhf_options / rks_options forward through to every frame of the optimization, not just the final single point. This matters for H-bonded systems and floppy molecules where one BFGS step sometimes lands on a particularly stubborn geometry — bump max_iter = 200 or add damping = 0.3 to the options struct and the whole trajectory stays stable.

A harder case: the water dimer

H-bonded clusters sit on a very flat potential-energy surface — plain BFGS Hessian extrapolation can push the waters apart before the quadratic model is trustworthy. run_job uses BFGSLineSearch which rejects uphill steps by construction, and pair this with a realistic fmax:

from vibeqc import Atom, InitialGuess, Molecule, RHFOptions, run_job

mol = Molecule.from_xyz("h2o_dimer.xyz")  # see examples/h2o_dimer.xyz

rhf_opts = RHFOptions()
rhf_opts.max_iter = 200                   # H-bonded intermediates need it
rhf_opts.initial_guess = InitialGuess.SAD

run_job(
    mol, basis="6-31g*", method="rhf",
    output="water_dimer_opt",
    optimize=True,
    fmax=0.2,                             # force precision floor is ~0.1 eV/Å
    max_opt_steps=25,
    rhf_options=rhf_opts,
)

You’ll get R(OO) ≈ 2.98 Å (experimental: 2.976 Å) — the well-known HF/6-31G* result. For a real binding-energy number add a correlation method and dispersion; for a chemistry demonstration this is enough.

Visualizing the trajectory

ASE’s BFGS converges H₂O at HF/6-31G* in just 5 steps from a mildly distorted starting geometry. The trajectory below shows the molecule sliding into its equilibrium geometry while the energy drops by ~156 meV:

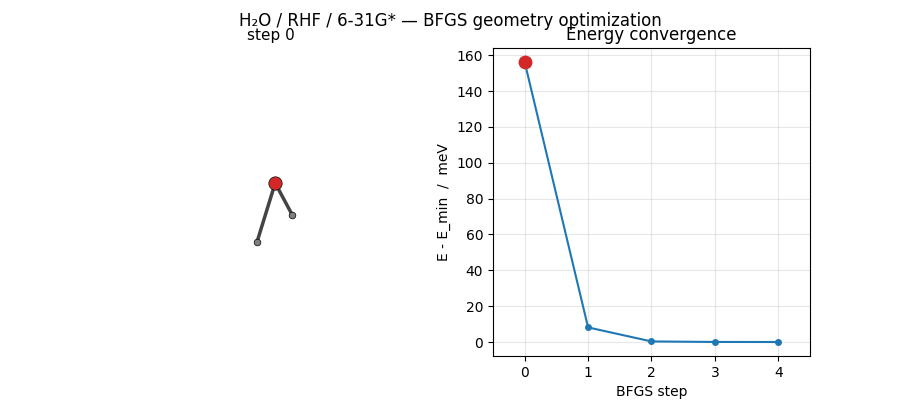

H₂O geometry-optimization animation: 3D ball-and-stick of water relaxing through 5 BFGS steps next to an energy-vs-step plot with a marker tracking the current step.

Regenerated by examples/plots/h2o-opt-trajectory-animation.py from the per-step .traj file. Pattern is the same as the normal-mode animation in tutorial 9: matplotlib FuncAnimation + PillowWriter, the only difference is that the input here is a series of saved-during-optimization positions rather than displaced-along-mode positions.

The .traj file holds positions, energies, and forces for every frame. ASE’s built-in GUI animates it interactively:

ase gui water_opt.traj

Or inspect programmatically:

import numpy as np
from ase.io import read

frames = read("water_opt.traj", index=":")
energies = np.array([f.get_potential_energy() for f in frames])
print(f"Energy dropped {energies[0] - energies[-1]:.4f} eV over "
      f"{len(frames) - 1} steps")

DFT geometries

Same call, different method:

run_job(
    mol, basis="def2-tzvp", method="rks", functional="PBE",
    output="water_pbe_opt",
    optimize=True,
)

PBE lengthens O-H bonds by ~0.02 Å relative to HF and pulls the HOH angle back toward 104°, generally matching experiment more closely (with the well-known caveat that GGA over-binds H-bonds somewhat).

Theory

What “optimization” means on a Born-Oppenheimer PES

The Born-Oppenheimer approximation decouples nuclear and electronic motion: fix the nuclei at positions \(\mathbf{R} = \{\mathbf{R}_A\}\), solve the electronic Schrödinger equation for those positions, and treat the resulting electronic energy \(E(\mathbf{R})\) as a potential for the nuclei. Geometry optimization is the problem of finding a stationary point on this potential-energy surface (PES):

\[ \mathbf{g}_A \;=\; \frac{\partial E}{\partial \mathbf{R}_A} \;=\; \mathbf{0} \quad \text{for every atom } A. \]

A local minimum has all positive eigenvalues of the Hessian \(\mathbf{H}_{AB} = \partial^2 E / \partial \mathbf{R}_A \partial \mathbf{R}_B\); a transition state has exactly one negative eigenvalue.

The Hellmann-Feynman theorem and analytic forces

For a variational electronic method at convergence, the forces \(\mathbf{F}_A = -\mathbf{g}_A\) reduce to expectation values of explicit derivatives of the Hamiltonian:

\[ \mathbf{F}_A \;=\; -\Bigl\langle \Psi \Big| \frac{\partial \hat{H}}{\partial \mathbf{R}_A} \Big| \Psi \Bigr\rangle \;=\; -\frac{\partial E_\text{nuc}}{\partial \mathbf{R}_A} \;+\; \text{electronic terms}. \]

This is the Hellmann-Feynman theorem. For an atom-centered Gaussian basis the orbitals themselves move with the nuclei, so the full analytic gradient also needs Pulay forces — corrections from the basis-function derivatives. vibe-qc assembles all the pieces (one-electron derivatives, two-electron ERI derivatives, DFT-grid derivatives for KS, and dispersion-gradient contributions) into an analytic \(\mathbf{g}_A\) at every SCF step. Accuracy is bounded by the SCF tolerance: default settings give forces better than \(10^{-8}\) Ha/bohr.

BFGS: quasi-Newton in quasi-reality

A Newton step along the PES would be \(\Delta \mathbf{R} = -\mathbf{H}^{-1} \mathbf{g}\), but computing the Hessian is expensive (tutorial 09 will do it by finite differences). Quasi-Newton methods build an approximate inverse Hessian \(\mathbf{B}_k\) from the history of steps and gradients. BFGS (Broyden-Fletcher- Goldfarb-Shanno) is the canonical update: given step \(\mathbf{s}_k = \mathbf{R}_{k+1} - \mathbf{R}_k\) and gradient change \(\mathbf{y}_k = \mathbf{g}_{k+1} - \mathbf{g}_k\),

\[ \mathbf{B}_{k+1} = \Bigl( \mathbf{I} - \frac{\mathbf{s}_k \mathbf{y}_k^T}{\mathbf{y}_k^T \mathbf{s}_k} \Bigr) \mathbf{B}_k \Bigl( \mathbf{I} - \frac{\mathbf{y}_k \mathbf{s}_k^T}{\mathbf{y}_k^T \mathbf{s}_k} \Bigr) + \frac{\mathbf{s}_k \mathbf{s}_k^T}{\mathbf{y}_k^T \mathbf{s}_k}. \]

Starting from \(\mathbf{B}_0 = \alpha \mathbf{I}\) (a loose diagonal model), BFGS accumulates curvature information so the quadratic model becomes genuinely predictive near the minimum.

The line-search variant used here

vibe-qc’s run_job(..., optimize=True) actually runs ASE’s BFGSLineSearch, not bare BFGS. The line search enforces the Wolfe conditions — sufficient-decrease plus curvature — on each step, so every accepted move reduces the energy. This matters on flat / weakly-bound surfaces (H-bonded clusters, van-der-Waals complexes) where plain BFGS’s quadratic model sometimes predicts wild steps that blow the system apart; the line search catches them. Cost: 1–3 extra SCFs per BFGS step when the first trial step is uphill.

Convergence criteria

vibe-qc stops when the maximum-component force is below fmax (units eV/Å, ASE convention). Default fmax = 0.05 is “medium-tight” (~1 × 10⁻³ Ha/bohr). Benchmark-quality geometries use fmax = 0.01; H-bonded clusters often need fmax = 0.2 because force noise from the DFT grid dominates below that floor.

Resources

~150 MB peak RAM, ~5 s on one core (Apple M2 baseline) for the H₂O example: ~10 BFGSLineSearch steps, each one HF/6-31G* + analytic gradient. The water-trimer optimization in examples/input-h2o-trimer-opt.py is ~5 minutes — basis size and step count both grow with system size.
